BFA系列防爆軸流風機(IIB)
|
|
| |
|
適用范圍
1、爆炸性氣體環境危險場所：1區、2區
2、爆炸性氣體環境：ⅡA、ⅡB
3、溫度組別：T1～T4
Application
1、For the dangerous sites with explosive air mixture:zone 1 and 2
2、Explosive gas atmospheres:group IIA , IIB
3、Temperature class:T1～T4
產品特點
1、防爆風機由防爆電機，風葉、風筒等部分組成。
2、鋼管或電纜布線均可。
Feature
1、The explosiom-proof ,axial fun consists of explosion-proofing motor,fabellum and blasting tube,etc.
2、Suitable both for steelpipe and cable wiring. |
|
| |
|

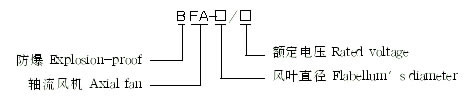

| 型號含義 Type designation |
|
 |
| |
|
 |
 |
| |
|

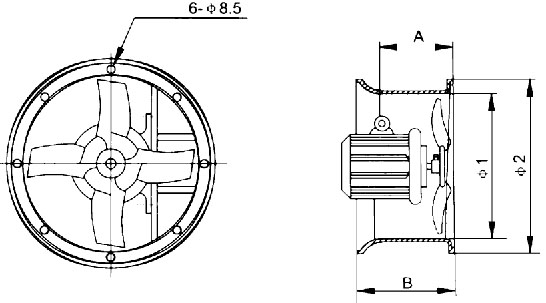

| 主要技術數據 Main technical Specification |
|
產品型號 |
A |
B |
C |
D |
BFA-400 |
280 |
315 |
410 |
430 |
BFA-500 |
280 |
315 |
510 |
530 |
BFA-600 |
280 |
315 |
610 |
630 |
|
| |
| |
|
| |
|
