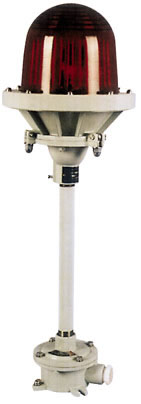

BJD系列防爆警示燈(IIB)
|
|
| |
|
適用范圍
1、1區、2區危險場所。
2、ⅡA、ⅡB類爆炸性氣體環境。
3、可配裝白熾燈。
Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in ⅡA、ⅡB group explosive atmosphere.
3、Suitable for incandescent lamp. |
產品特點
1、鑄鋁合金外殼，表面噴塑。
2、燈罩采用紅色鋼化玻璃罩。
3、作為建筑物頂部四周標志或信號報警之用。
4、鋼管或電纜布線，吊桿，座式均可。
5、符合GB3836-2000，IEC60079標準要求。
Features
1、Diecasted aluminium alloy shell with plastic-sprayed surface.
2、Light shade is made of red toughened glass.
3、Used as marking or signal alarming for building top or surround.
4、Suitable for both steelpipe and cable wiring, pendant and socket type.
5、Suitable for GB3836-2000, IEC60079 standard request. |
|
|
| |
|
 |
| |
|
| 主要技術參數 Main technical parameters |
|
|
防護等級 |
電纜外徑 |
進線口螺紋 |
|
質量(Kg) |
Exde II BT4 |
IP54 |
10-14 |
3/4 |
E27 |
4.3 |
|
|
| |
|
| 配用光源 Supplied with lamps |
|
靜止式配用光源 |
220V/100W,200W白熾燈 |
閃爍式配用光源 |
220V/6V/8V 150次/min 頻閃 |
|
|
| |
|
| |
|
